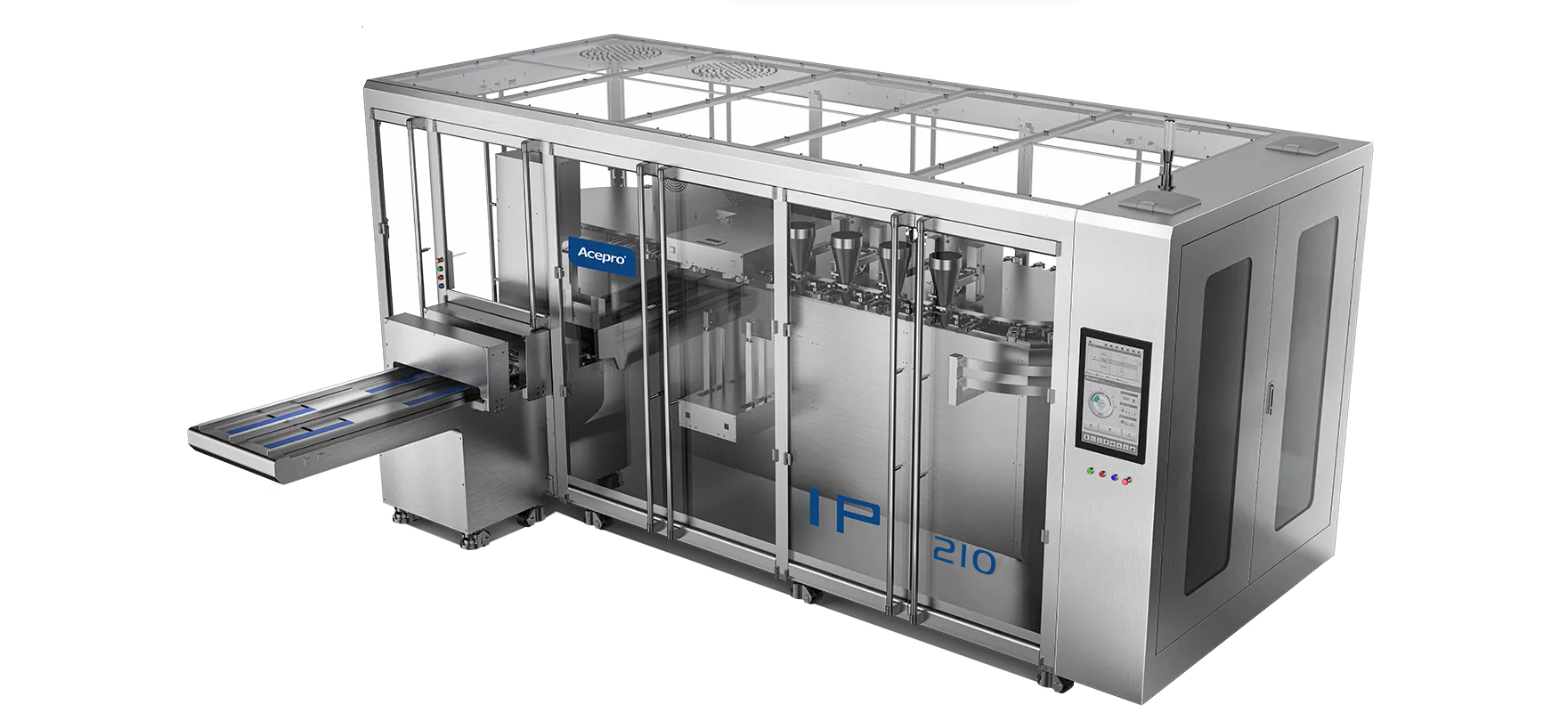

上海歐朔生產的柔性化水平給袋式包裝機, 支持一鍵式換產,跟隨式下料,生命周期管理,OEE效率提升,兼容大范圍尺寸及人機交互界面等功能,為您的包裝提供更加智能的解決方案.
柔性化水平給袋式包裝機 特點及參數
EQUIPMENT FEATURE AND PARAMETER:
1.一鍵式換產
One-click change of production
2.跟隨式下料
Follower-type filling
3.生命周期管理
Life cycle management
4.OEE效率提升
Improve OEE of equipment
5.兼容大范圍尺寸
Compatible with a wide range of sizes
6. 4.0人機交互界面
4.0 Human Computer Interaction Interface
| 型號 Model | IP210 | IP320C | IP430L |
| 袋形尺寸范圍 Pouch Size |
90*120(25*2)(Min) 210*350(50*2)(Max) |
130*200(25*2)(Min) 320*600(75*2)(Max) |
170*300(25*2)(Min) 430*1000(75*2)(Max) |
| 包裝速度 Packaging Capacity | 80-120ppm | 60-150ppm | 10-50ppm |
| 能 耗Energy Consumption | ≈10KW/h | ≈16KW/h | ≈8KW/h |
| 耗氣量 Air Consumption | ≈1m³/min | ≈1m³/min | ≈1m³/min |
| 設 備尺寸 Machine Dimensions |
4800*1410*2150mm (L*W*H) |
7000*2200*2150mm (L*W*H) |
5300x 2150 x 2750mm (L*W*H) |
| 重 量 Weight | ≈8000kg | ≈10000kg | ≈10000kg |
