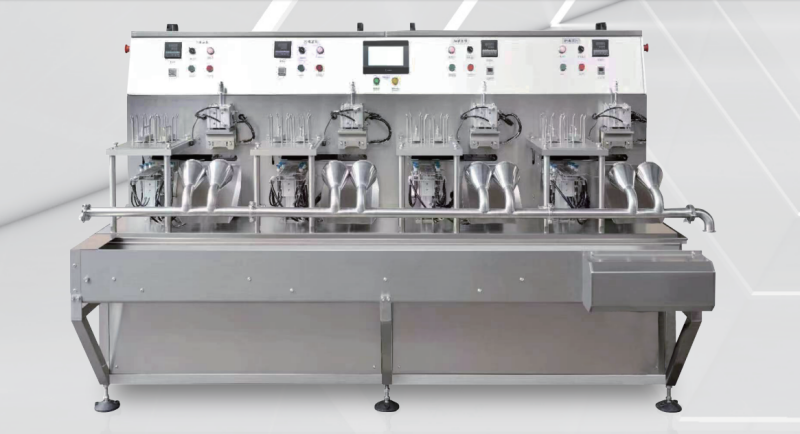

膨脹袋灌裝機的特點：
(1).設備自動進行取袋、開袋、灌裝、封口
(2).伺服調節容量，操作簡單
(3).整機傳動運轉順暢、無卡頓
(4).可連接CIP清洗，維修方便;便于清潔
|
型號Model |
AP-0490A(3000/pph) | AP-0890A(7000/pph) |
|
灌裝封口頭數 Filling and sealing quantity |
4頭(four heads filling ) | 8 頭(eight heads filling) |
|
尺寸size |
2300mm*1350mm*1500mm(L*W*H) | 2620mm*1500mm*1500mm(L*W*H) |
|
重量Weight |
600KG | 800KG |
|
電源電壓 voltage supply |
三相五線制; F級絕緣; 電壓380V+5%; 頻率:50HZ士1% (Three-phase five-wire system; Class F insulation; Voltage 380V±5%; Frequency: 50HZ±1%) |
三相五線制; F級絕緣; 電壓380V+5%; 頻率: 50HZ士1% (Three-phase five-wire system; Class F insulation; Voltage 380V±5%; Frequency: 50HZ±1%) |
|
裝機容量 Installed capacity |
2.5KW | 4.8KW |
|
壓縮空氣流量 Compressed air flow |
1.5 立方米/min | 1.5 立方米/min |
|
壓縮空氣壓力 compressed air pressure |
0.4~0.6 Mpa | 0.4~0.6 Mpa |
|
灌裝進料壓力 Filling feed pressure |
0.02~0.05 Mpa | 0.02~0.05 Mpa |
|
最大灌裝容量 Max. filling capacity |
248 ml | 248 ml |
|
灌裝精度 Filling accuracy |
≤±1 ml | ≤±1 ml |
